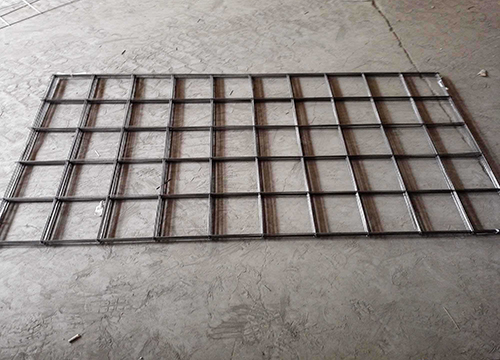

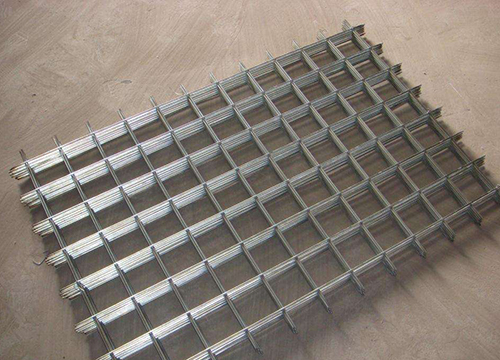

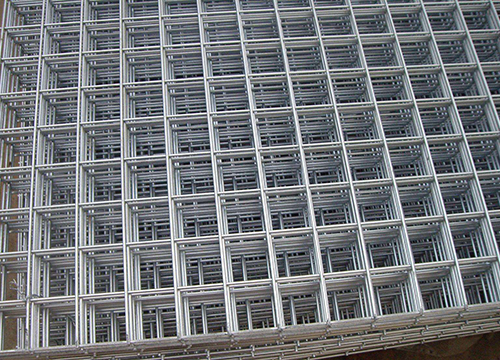

Floor heating mesh

Floor heating mesh, also known as geothermal mesh, floor heating mesh, steel wire mesh, is made of black iron wire or modified wire drawing and welding. It has the characteristics of flat mesh surface, strong welding points, uniform mesh and convenient transportation. Its function is to enhance the overall strength of the insulation board and facilitate the installation and fixing of the heating pipe.

Specifications: The diameter of the floor heating mesh wire is mostly 1.5-4mm. The thickness of the wire diameter determines the quality of the project and the bearing capacity of the ground (according to the specific needs of the project). The mesh size is 5*5cm, 10*10cm, 5*10cm, 6*6cm.

The commonly used floor heating mesh specifications are wire diameter 2mm, mesh size 10cm×10cm, length and width 1m×2m.

Introduction

First of all, let me introduce the material of floor heating steel wire mesh: floor heating engineering insulation generally uses black wire mesh and low-carbon steel wire.

The price of black wire steel wire mesh is slightly cheaper than that of low-carbon steel wire mesh.

Specifications

1m x 2m mesh is used for floor heating construction (very convenient for transportation and construction),

The mesh size ranges from 5cm to 30cm (can be customized), and the diameter of the floor heating mesh wire is mostly 1.5-4mm. The thickness of the wire diameter determines the quality of the project and the bearing capacity of the ground (according to the specific needs of the project).

Function

Floor heating mesh is also called wire mesh. It plays the following role in floor heating projects:

1. It is convenient for the installation of pipes and the construction speed is fast. The pipes should be fixed above the wire mesh.

2. It can enhance the bearing capacity of the roof and avoid the occurrence of undesirable phenomena such as cracking, cracking, and collapse of the ground.

3. The thermal conductivity of the wire mesh is very good, which can promote uniform heat dissipation.

4. The most important point is heat preservation and crack prevention. The wire mesh is a kind of heat preservation and crack prevention material in construction projects. The construction effect is very good and it has been trusted by the construction industry.
